ETS2 Dashboard Editor v0.1.0
A free, open-source visual editor for creating custom digital dashboard mods — no coding required.


━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
What is it?

ETS2 Dashboard Editor is a desktop application that lets you design fully custom instrument cluster mods for Euro Truck Simulator 2 and American Truck Simulator — entirely visually, without opening a text editor or writing a single line of code.

It works by reading and writing the game’s native .sii dashboard format directly, so everything it produces is fully compatible with both games out of the box.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Features

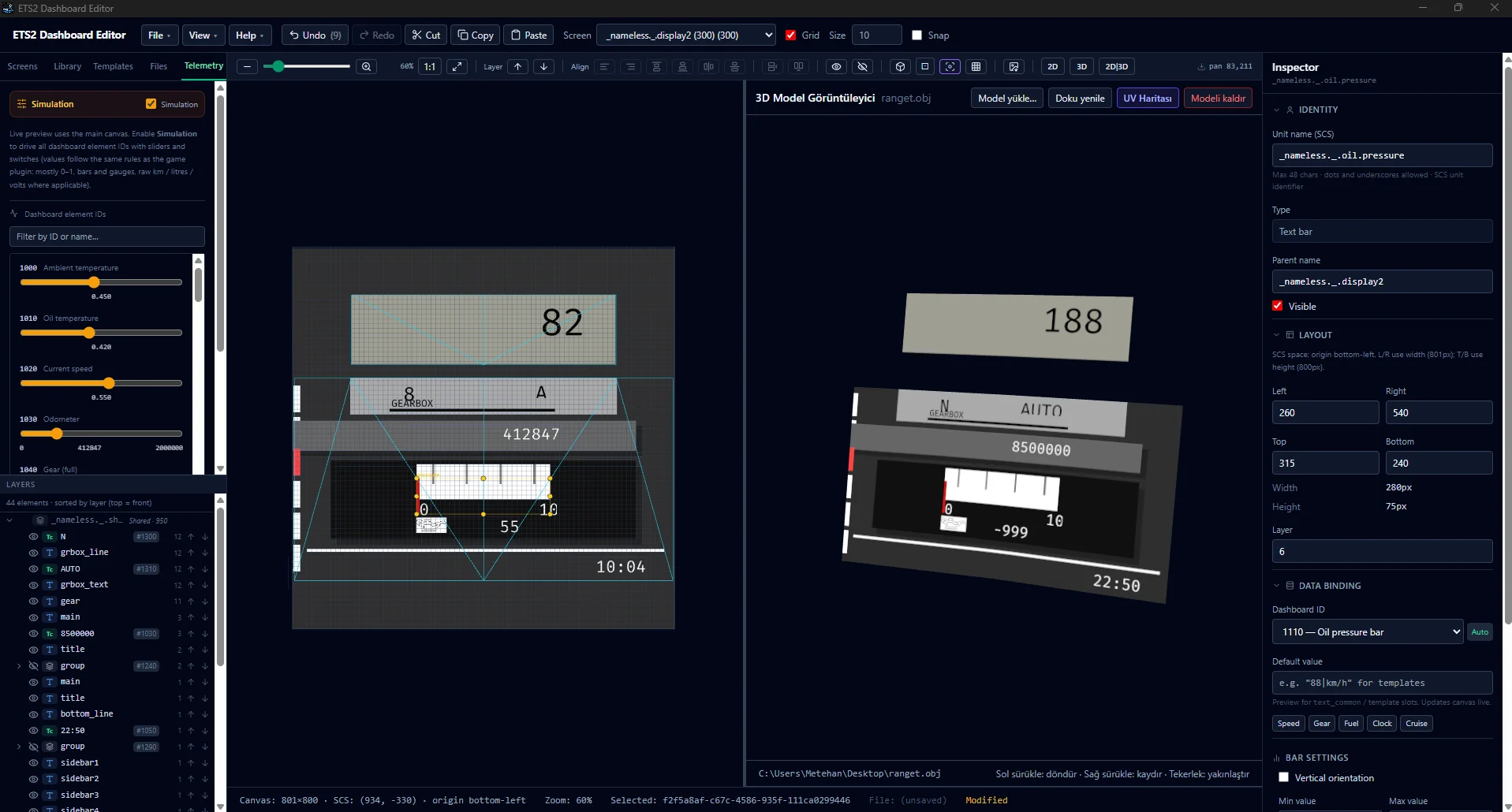

Drag & Drop Canvas – Add, move, resize and layer dashboard elements visually using a Pixi.js powered 2D canvas
Live Telemetry Preview – Connect to the SCS SDK plugin and see your dashboard respond to real game data while you drive
Simulation Mode – Test every element with sliders and toggles without needing the game open
3D Model Viewer – Apply your dashboard design to a UV-mapped 3D gauge model and preview the final result before exporting
50+ Preset Elements – Ready-made gauges, bars, text indicators, warning lights and backgrounds to get started fast
100+ Telemetry Channels – Speed, RPM, fuel, water temp, air pressure, cruise control, blinkers, lights, AdBlue and more
Custom DDS Support – Import your own graphic files and bind them to any telemetry channel
One-Click Mod Export – Generates a complete, game-ready mod ZIP with dashboard.sii, textures and font files
SII Import – Load and edit any existing dashboard.sii file from other mods
Multi-Screen Support – Manage Screen 100-800, 900 (warning) and 950 (shared overlay) in a single project
Full Undo / Redo – Unlimited history for every editing action
Alignment Tools – Align, distribute and snap elements to a configurable grid
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
How to use
Install the app and set your Game Root Path in Settings
Copy the included SCS SDK plugin DLL to your game’s bin/win_x64/plugins/ folder for live telemetry
Open the editor, drag preset elements from the Library onto the canvas
Select any element and adjust its position, size, and telemetry binding in the Inspector panel
Use File → Export mod… to generate the mod ZIP
Drop the ZIP into DocumentsEuro Truck Simulator 2mod and enable it in the Mod Manager
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Download & Links

SCS Forum Post: https://forum.scssoft.com/viewtopic.php?t=350743&sid=32fb66a92bfbd716e5f98e706a90515e
Documentation: https://mbcustoms.github.io/ets2-dashboard-editor/documentation.html
Source Code: https://github.com/MBCustoms/ets2-dashboard-editor
Support: https://www.patreon.com/cw/MB3DWorks

Platform: Windows (v0.1.0)
Free & Open Source (MIT)

Credits:
MBCustoms (Metehan BİLAL)
